Granite CNC Stone Cutting 5 Axis Bridge Saw Machine

    Buy cheap Granite CNC Stone Cutting 5 Axis Bridge Saw Machine from wholesalers

    Buy cheap Granite CNC Stone Cutting 5 Axis Bridge Saw Machine from wholesalers
    • Buy cheap Granite CNC Stone Cutting 5 Axis Bridge Saw Machine from wholesalers

    Granite CNC Stone Cutting 5 Axis Bridge Saw Machine

    Ask Lasest Price
    Brand Name : StoneSawMachine.com
    Model Number : MCALT-500
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, , T/T
    Supply Ability : 20 Sets Per Month
    Delivery Time : 30 days after deposit
    • Product Details
    • Company Profile

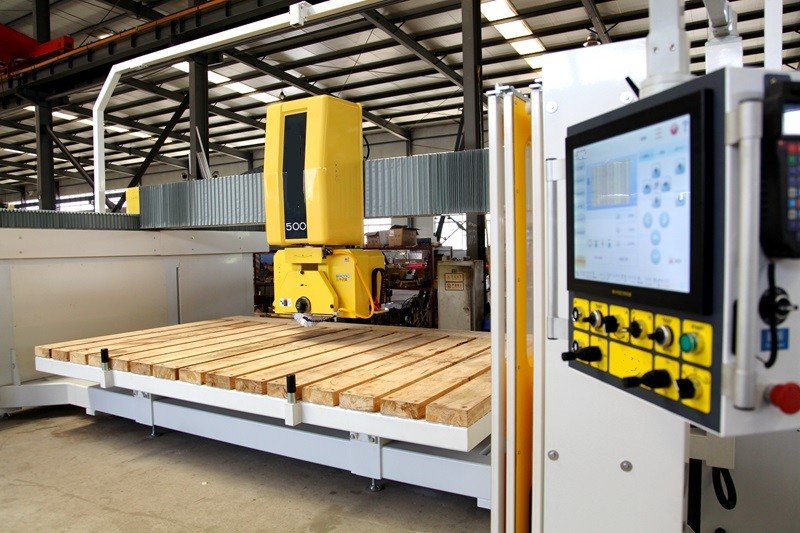

    Granite CNC Stone Cutting 5 Axis Bridge Saw Machine

    5 AXIS CNC NATURAL STONE CUTTING MACHINE

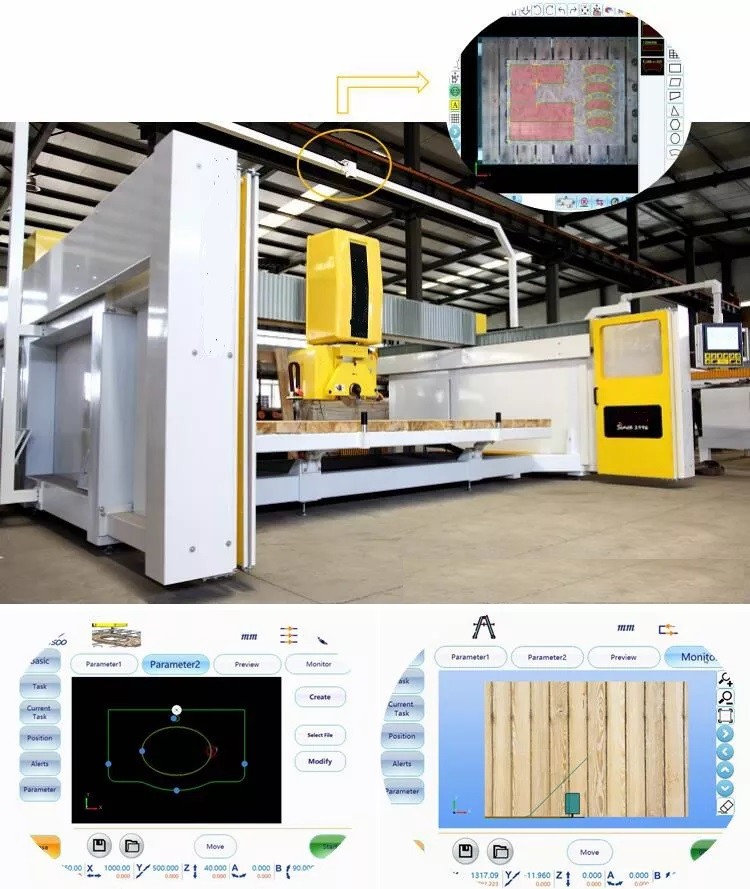

    MCALT-500 is the new generation multi-function finalizing machine which is associated to be designed and constructed. With pattern functioning and advanced wise control system and synchronous CNC control system, the machine can be easily operated , and without knowing complicated CNC knowledge. This kind of machine can be used to realize some advanced functions like: Camera function---positioning typesetting, computerized way of measuring of plate size and tool size, the machine brain can rotate fish hunter 360 degrees and chamfer 90 degree. It could possibly cut, drill, position, dig round, generator, profile edge, start basin hole, oven hole, slash chopping and other multi use integration, with premium quality motor, high finely-detailed and fast swiftness. It can be well suited for quartz stone, rock piece, artificial stone, stone, marble and other large, medium and small stone beautification projects.
    Characteristic:
    you. Compact size without needing the land bottom.
    2. With superior CNC control system and all routine operation, the machine can be managed without professional workers.
    3. With powerful functions, the machine can work virtually all the jobs of a little factory.
    4. With less electricity plus more efficiency, the cost is reduced much.
    5. Large quality accessories and electric parts are employed to secure long lifespan and low cost.

    Specification
    Model
    MCALT-E500
    Programming method
    CAD& Manual
    Control method
    CNC
    Main motor power
    11kw 380V(Customized)
    R.P.M
    1000-6000r/min
    Blade size
    350-500mm
    Cutting thickness
    140mm
    Working table size
    3800*2300mm
    X axis working stroke
    3800mm
    Y axis working stroke
    2300mm
    Z axis working stroke
    460mm
    A axis working stroke
    360 degree free rotation
    B axis working stroke
    Auto 0-90 degree chamfer
    Overall size
    6307*4925*3414mm
    Weight
    6500KG
    Package
    1 x 40’HQ/OT container
