    Horizontal Stone Saw Machine

    Ask Lasest Price
    Brand Name : StoneSawMachine.com
    Model Number : MCDP-800
    Certification : CE, ISO9001:2015, ISO14001:2015
    Price : Negotiable
    Payment Terms : L/C, , T/T
    Supply Ability : 30 Set/Sets per Month marble cutting machine
    Delivery Time : 30 days after deposit
    • Product Details
    • Company Profile

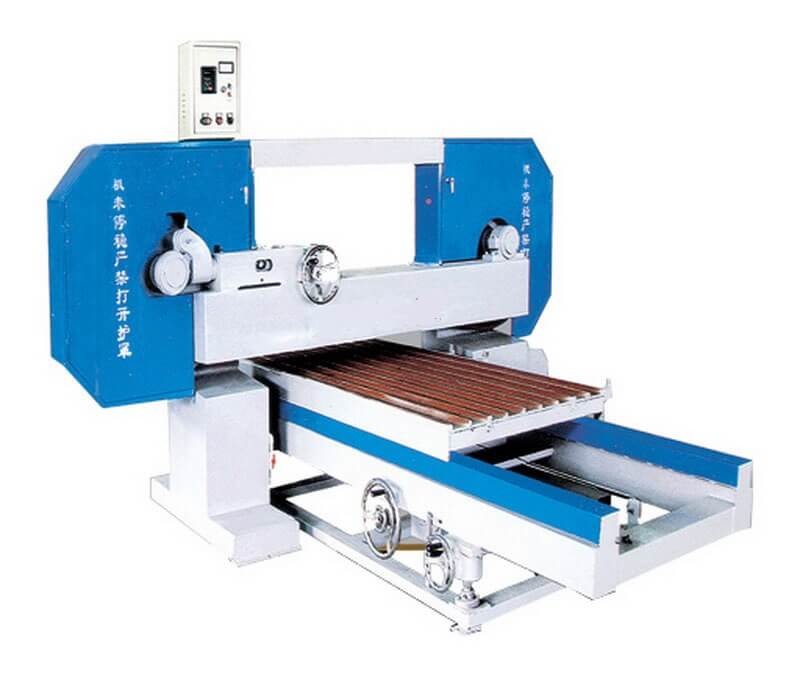

    Horizontal Stone Saw Machine

    Horizontal Stone Saw Machine

    This machine is chiefly processed for thin maeble,complex slabs.It is not only cut slab 2cm thick into pieces,but also cut block.

    It has absorbed of the similar machines from home and abroad.it is united in style and has concise simple and atttractive appearance.It employs a conveyor belt system for transmission and adopts continues cutting,it is integrated in design,simple but elegant.cutting speed is regulated by a multiple-frequency speed-adjusting device,and depending on the thickness of stone material.it is a high-efficiency and steady performing machine.
    It has been improved over three times,it redeems the saw with suspending cranc in oil pressure.it flat level and improves the productive efficiency and reduces cost.


    Our factory is a technical type enterprise, professionally produce stone processing equipments.Our main products include Water Jet, Bridge cutter, Digital controlling chain saw, all purpose profiling machine, mosaic production line, countertop edge profile machine, thin slab machine,sink hole cutting machine.We always offers machines of high technology to the most competitive prices, responsible service.

    We guarantee you value-added, close, and attentive services. please do not hesitate to contact us.


    TECHNOLOGY PARAMETER
    Machine dimension3900×4400×2450mmWater put25L/min
    Working table outlook dia2400×1260Weight4400kg
    Machine setting area39m²Blade size7850×100×2.2mm
    Power full380V 50HZcutting gap2.5mm
    Total power12kwMax production dia2400×1500mm
    Main motor power7.5kwCutting thickness5-170mm
    Table motor power1.5kwWorking table speed0-150mm/min
    Pressure system power1.5kwworking pressure5-7Mpa
    Rise/down power1.5kwMachine lubricating oilCD40
