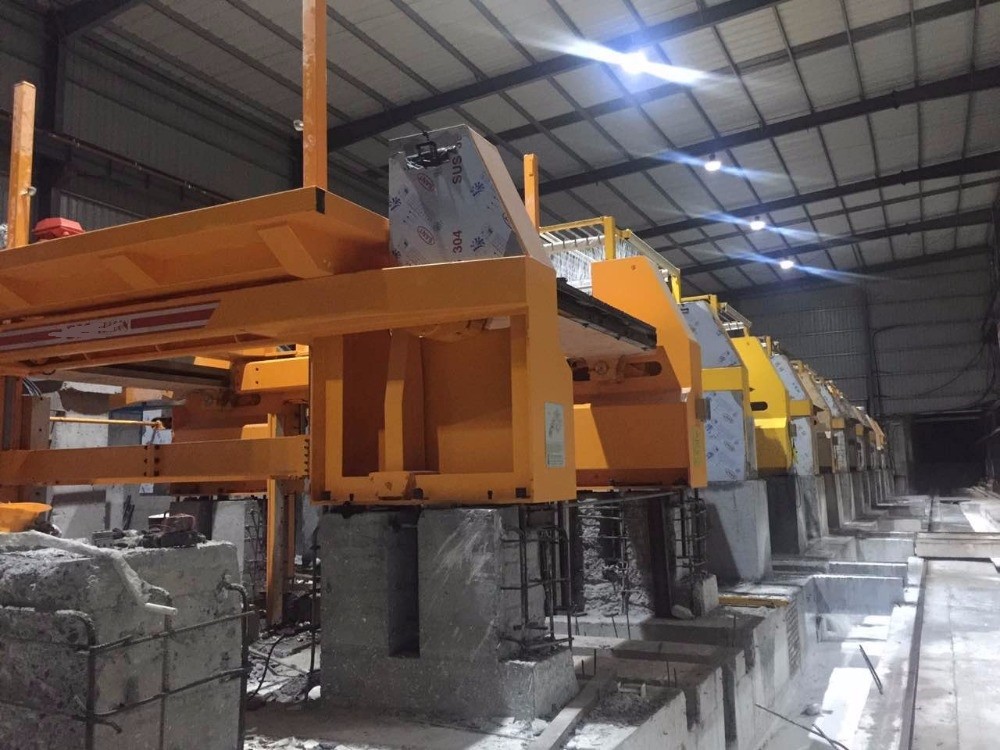

Stone Marble Gang Saw Machine

Product Application

Sliding sleeve double link saw is a kind of diamond frame saw because it adopts static pressure circular guide rail structure. Diamond frame saw, also known as diamond row saw, marble frame saw and diamond big saw, is sawing

It is one of the two mainstream equipments in the production of large-scale stone plate that the high-efficiency processing equipment of medium and hard marble, sandstone, synthetic stone and so on can be obtained. characteristic: 1. Adopt table lifting feeding mode for sawing, frequency conversion drive 2. The saw frame can be assembled with 80 diamond saw blades 3. Static pressure circular guide rail structure is adopted for reciprocating swing of saw frame 4.Low power consumption 5. Variable frequency drive 6. It adopts double crank and double connecting rod structure 7. The specification of raw materials shall not be greater than 3250 * 2000 * 2000mm

Structural characteristics

The feeding block is sawed by variable frequency motor The lifting guide rail structure adopts V and flat rail to ensure the perpendicularity of cutting. The saw frame can be assembled with 80 diamond saw blades (cutting plate thickness of 20 mm)?
The saw frame moves to and fro with static pressure sliding sleeve circular guide rail structure. The width of saw frame is 2000mm. The saw blade is evenly tensioned by hydraulic pressure. The main motor is driven by frequency conversion, and the flywheel (diameter: 3400 mm) is driven by hydraulic coupling. The flywheel drive adopts double crank to drive double connecting rod and saw frame to move back and forth. It has the advantages of small movement resistance, low power consumption and high cutting accuracy.
