    Stone Crusher Machine

    Ask Lasest Price
    Brand Name : StoneSawMachine.com
    Model Number : MCQJ-400
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, , T/T
    Supply Ability : 20 Sets Per Month
    Delivery Time : 30 days after deposit
    • Product Details
    • Company Profile

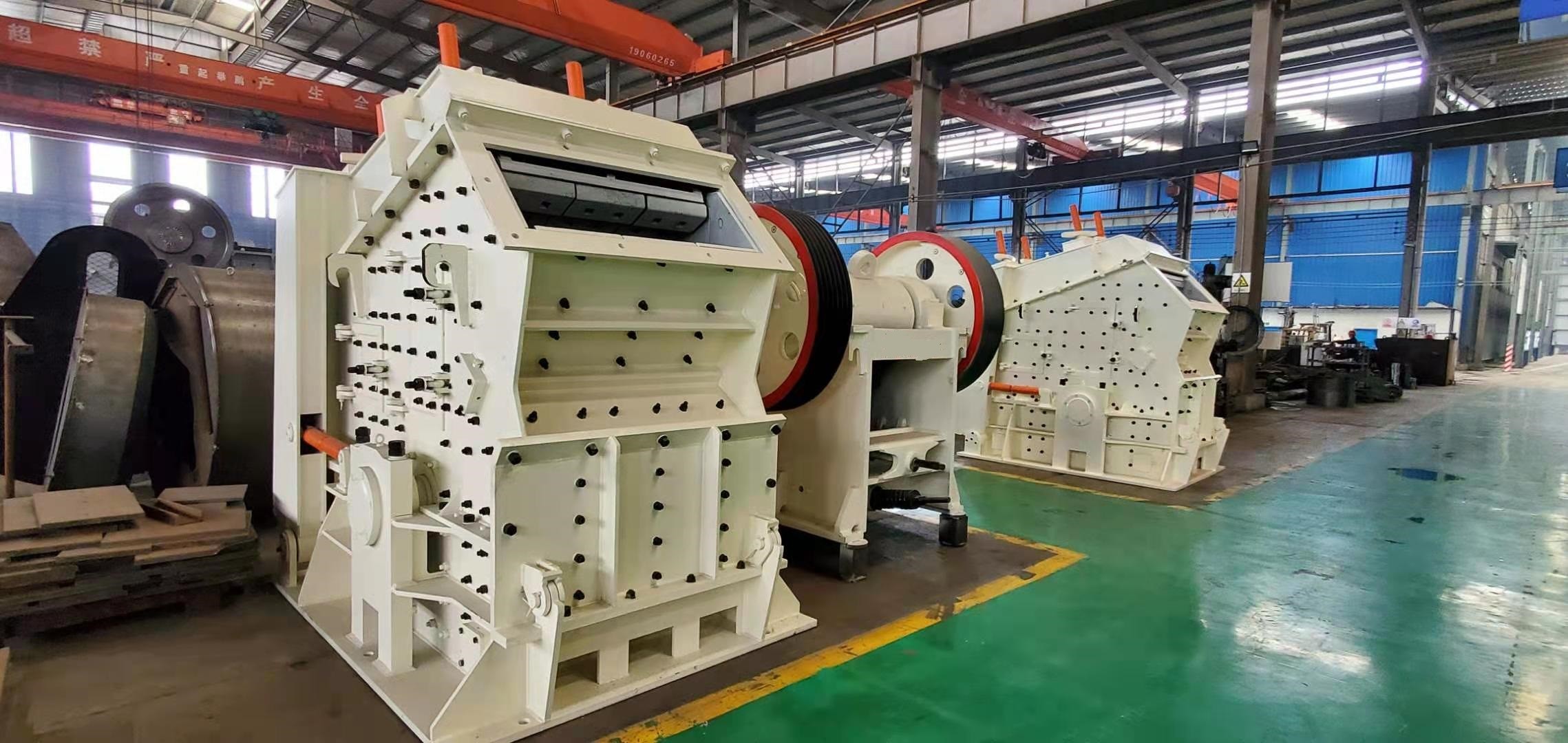

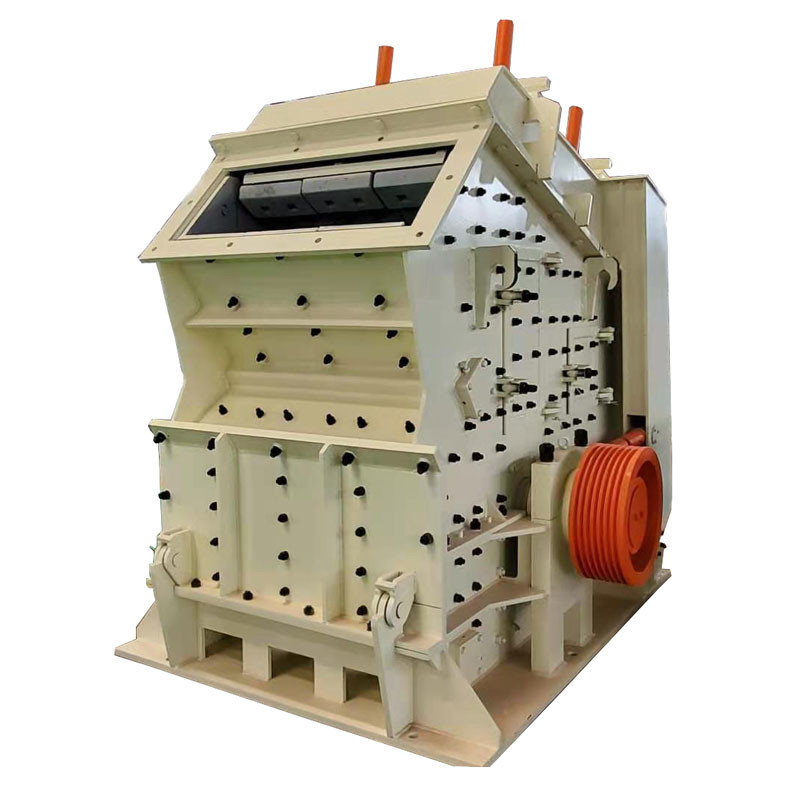

    Stone Crusher Machine

    Stone impact crusher, Max. feeding size is 300 mm, capacity is 50-90 t/h, motor powder is 55 kw. Impact crusher is an important equipment for secondary crushing. It is widely used in mining, transportation, construction and chemical industry. PF series impact crusher can crushing many different kinds of materials strength less than 360 Mpa, such as limestone, gypsum, concrete, etc. When the crusher works, the motor drives the rotor to rotate with high speed, on the rotor where installed the hammers. When the materials get into the area which the hammers effect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being recrushed. The materials from large to small all to be crushed at the impact chamber repeatedly.


    Features and advantages of our impact crusher

    1. Advanced design, High reduction ratios
    2. High chrome plate hammer
    3. Hydraulic or manual open switch
    4. Special impact plate
    5. Excellent, stress-free, cubical-shape products

    Model
    Feeding opening size
    (mm)
    Feeding size
    Capacity
    (t/h)
    Motor power
    (kw)
    PF1007
    400x730
    ≤250
    15-60
    45
    PF1010
    400x1080
    ≤300
    50-90
    55
    PF1210
    450x1060
    ≤300
    80-150
    90
    PFV1214
    450x1440
    ≤300
    100-200
    132
    PFV1315
    550x1530
    ≤350
    130-280
    160
    PFV1320
    610x1900
    ≤500
    180-400
    220
    PFV1520
    830x2040
    ≤750
    300-550
    315-400
    PFV1820
    1260x2040
    ≤800
    600-800
    630-710
