CNC 3 Axis Stone Profile Cutting Machine

    Buy cheap CNC 3 Axis Stone Profile Cutting Machine from wholesalers

    Buy cheap CNC 3 Axis Stone Profile Cutting Machine from wholesalers
    • Buy cheap CNC 3 Axis Stone Profile Cutting Machine from wholesalers

    CNC 3 Axis Stone Profile Cutting Machine

    Ask Lasest Price
    Brand Name : StoneSawMachine.com
    Model Number : MCSD-500
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, , T/T
    Supply Ability : 20 Sets Per Month
    Delivery Time : 30 days after deposit
    • Product Details
    • Company Profile

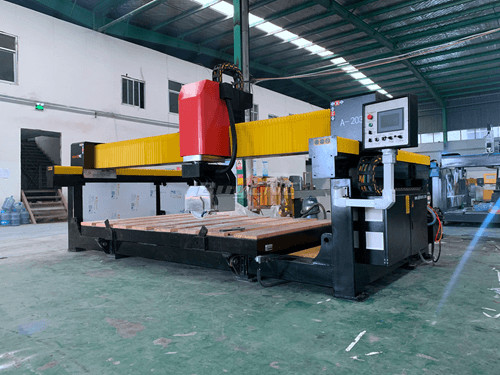

    CNC 3 Axis Stone Profile Cutting Machine

    This is a 3 axis CNC Stone cutting saw machine,it is designed for stone company,this stone cutting machine can meet the diversified processing needs of the stone market.


    Compared with traditional infrared bridge CNC saw machine, our stone slab cutting machine has advanced servo motor and hydraulic turning table (maximum turning 85°). Not only that, this granite cutting tools also supports Vertical 90° cutting and 45° angle cutting, chamfering.If you want to know more informations about this granite stone cutting tools,Please leave your contact information.


    This stone cutting machine is a bridge cutting saw machine,it has a CNC saw blade.The common used saw blade diameter is 350mm,and it can cut 50mm thickness material.And the max saw blade diameter is 400mm,which can cut 70mm thickness material.The granite cutting tools is multifunctional. The cutting CNC saw not only can cut 90 degrees vertically, but also can swing ±45 degrees left and right. 45° cutting and chamfering are very useful in the processing of stone countertops.

    Stone Cutting Machine Parameters
    ASC-2032-S-3
    3200*2000mm
    400mm/70mm
    350mm/50mm
    90° or ±45°
    85°
    Hydraulic
    11KW motor
    ±0.025mm
    Steel and hard PVC
    25,000mm/min
    20,000mm/min
    Servo Motor
    Japan Shimpo
    380V 3 phase 50/60hz
    G Code
    PLC
    Temperature: 0℃~45℃ Relative Humidity: 30%~75%
