Applications:

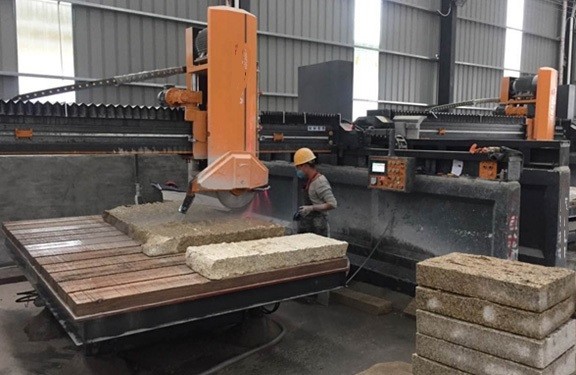

This machine is applicable for the cutting of granite and marble
slabs, cement products, asbestos products, etc. It features a high
processing precision in proper operating conditions. This machine
is characterized by high precision, high performance and is
particular applicable for the cutting of high-value and heavy-gauge
slabs.
Features:
1.Controlled by PLC, operated expediently,accurately and stably
2.The support guide way adopts the imported linear guide way to
make sure high precision and long life.
3.The main parts and components of the machine (such as frequency
converter, magnetic rule, laser reticule apparatus.) are all of
imported good-quality materials, thus ensuring high precision,
stable performance, good adaptability as well as high reliability
of the whole machine.
4.One set can be loaded in one 20 feet container.
5.Common station: concrete foundation, table rotate 90 degree; We
can make to order: steel structure, table rotate 0, 45, 90, 135
degree. Except that, the D type can add profiling function to
order.
Technical Data
| Name | Unit | MCQJ-400 | MCQJ-600 | MCQJ-800 |
| Blade diameter | mm | ¢350~¢400 | ¢400~¢600 | ¢600,¢800 |
| Blade up/down stroke | mm | 200 | 380 | 600 |
| Main motor power | kw | 15 | 18.5 | 18.5 |
| Feeding motor | kw | 1.5 | 1.5 | 3 |
| Slicing motor | kw | 1.1 | 1.1 | 1.1 |
| Worktable size (Max. cutting size) | mm | 3200×2000 | 3200×2000 | 3200×2000 |
| Worktable rotation angle | ° | 90° or 360° | 90° or 360° | 90° or 360° |
| Worktable upturning angle | ° | 0°~85° | 0°~85° | 0°~85° |
| Blade tilting angle | ° | no | no | 45º |
| Dimension(L×W×H) | mm | 5870×4700×2520 | 5870×4700×2720 | 6300*4700*2800 |
| Weight | kg | 6000 | 6000 | 6800 |
