    Quarry Stone Cutting Machine

    Ask Lasest Price
    Brand Name : StoneSawMachine.com
    Model Number : MCHL-4200
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, , T/T
    Supply Ability : 20 Sets Per Month
    Delivery Time : 30 days after deposit
    • Product Details
    • Company Profile

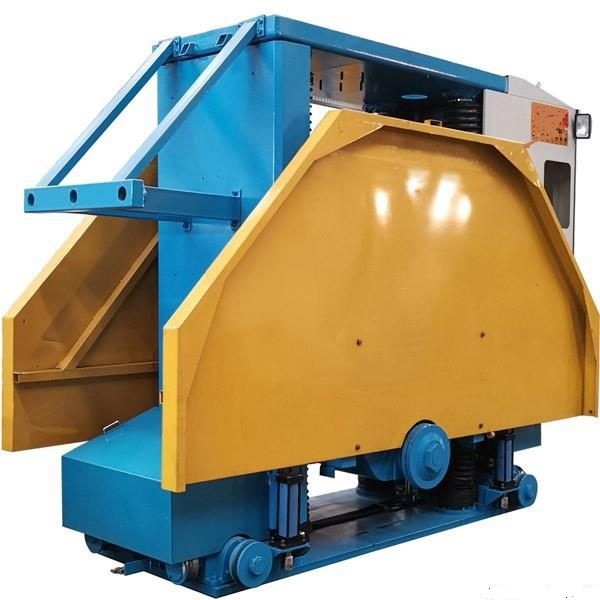

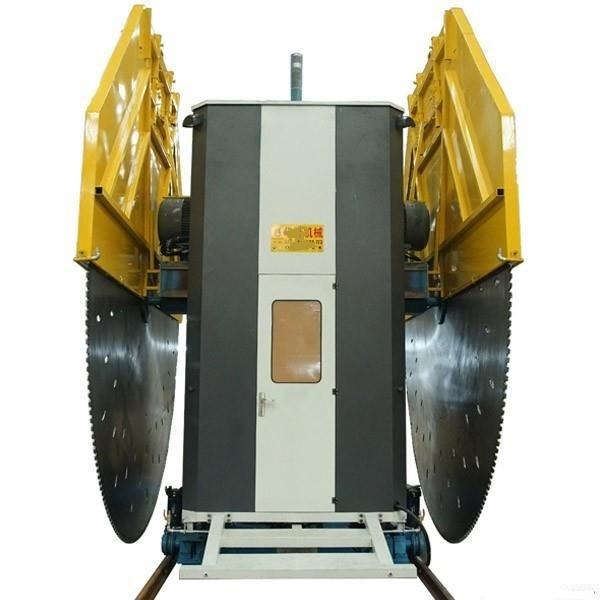

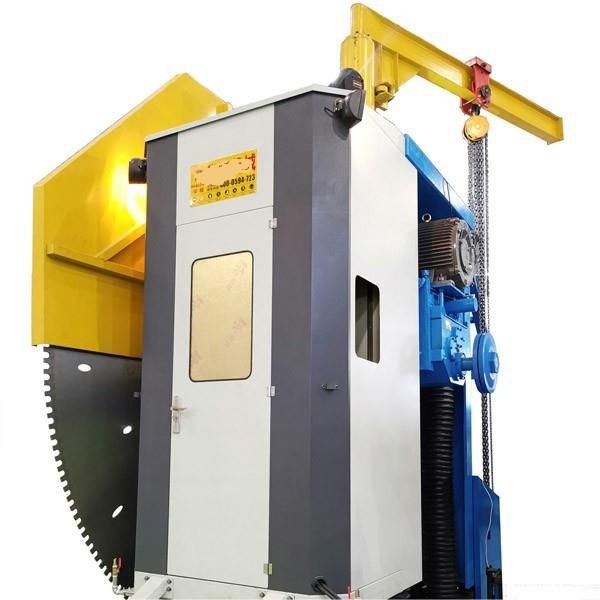

    Quarry Stone Cutting Machine

    Double Blade Stone Quarry Mining Machine is a new stone quarry cutting machine other than wire saw, which was original created by our company with patents in 2002 , which working on railway, mining stone with double big blades, improve much the mining efficeincy while lower consumption. It's popular in China and used more and more worldwide in quarry for cutting granite, also good for marble, quartz and other natural stone.


    Why choose our quarry stone cutting machine?

    * High speed --- It can cut est. 15 sqm/hour, while the wire saw cuts about 10 sqm/hour.
    * Low consumption --- It cost about USD1.00/sqm, while the wire saw cost USD1.5-2.3/sqm.
    * Quality Assurance
    --- Made with 25 years+ expertise and patents.
    --- Strictly conforming to ISO9001:2105 quality management system.
    * On-purchase Service
    --- Many machines available for choice.
    --- Customization available
    --- Experienced techs for all your questions.
    * After-sale Service
    --- Parts & Accessories Quick supply for needs
    --- Troubleshooting by phone, e-mail, or WhatsApp/Wechat
    --- Installation and operation training for any machine
    --- Qualified and experienced technicians available to overseas


    TECHNICAL DATA of quarry stone cutting machine
    Model No.
    3000 /3300
    3600
    400/4200
    4600/4800/5000
    Blade diameter
    mm
    3000 / 3300
    3600
    4000/4200
    4600 / 4800 / 5000
    Max.cutting depth
    mm
    1250 / 1400
    1500
    17501850
    2050 / 2150 / 2250
    Cutting width of Type A
    mm
    1360-1860
    1450-1950
    1950-2450
    2450-2950
    Type B
    mm
    1800-2300
    1900-2400
    2150-2650
    2650-3150
    Type C
    mm
    2200-2700
    2300-2800
    2550-3050
    2850-3350
    Type D
    mm
    2700-3200
    2700-3200
    2850-3350
    3200-3700
    Power of main motor
    kw
    55x2
    55x2
    65x2
    65x2
    Power of pump motor
    kw
    3.5
    3.5
    4
    4
    Power of stroke motor
    kw
    2.2
    2.2
    3.5
    3.5
    Power of rail switch motor
    kw
    0.75x2
    0.75x2
    1.1x2
    1.1x2
    Gross power
    kw
    117.2
    117.2
    139.2
    139.2
    Dimension (L x W x H)
    cm
    320x210x280
    380x220x310
    470x210x350
    520x220x420
    Gross Weight
    kg
    7000-8500
    7500-10000
    9500-11500
    9500-12500
    Model No.
    Max. Cutting Depth
    Blade Diameter
    Main Motor
    Dimension (LxWxH)
    1350
    425mm
    1350 mm
    22kw x 2
    200x180x150cm
