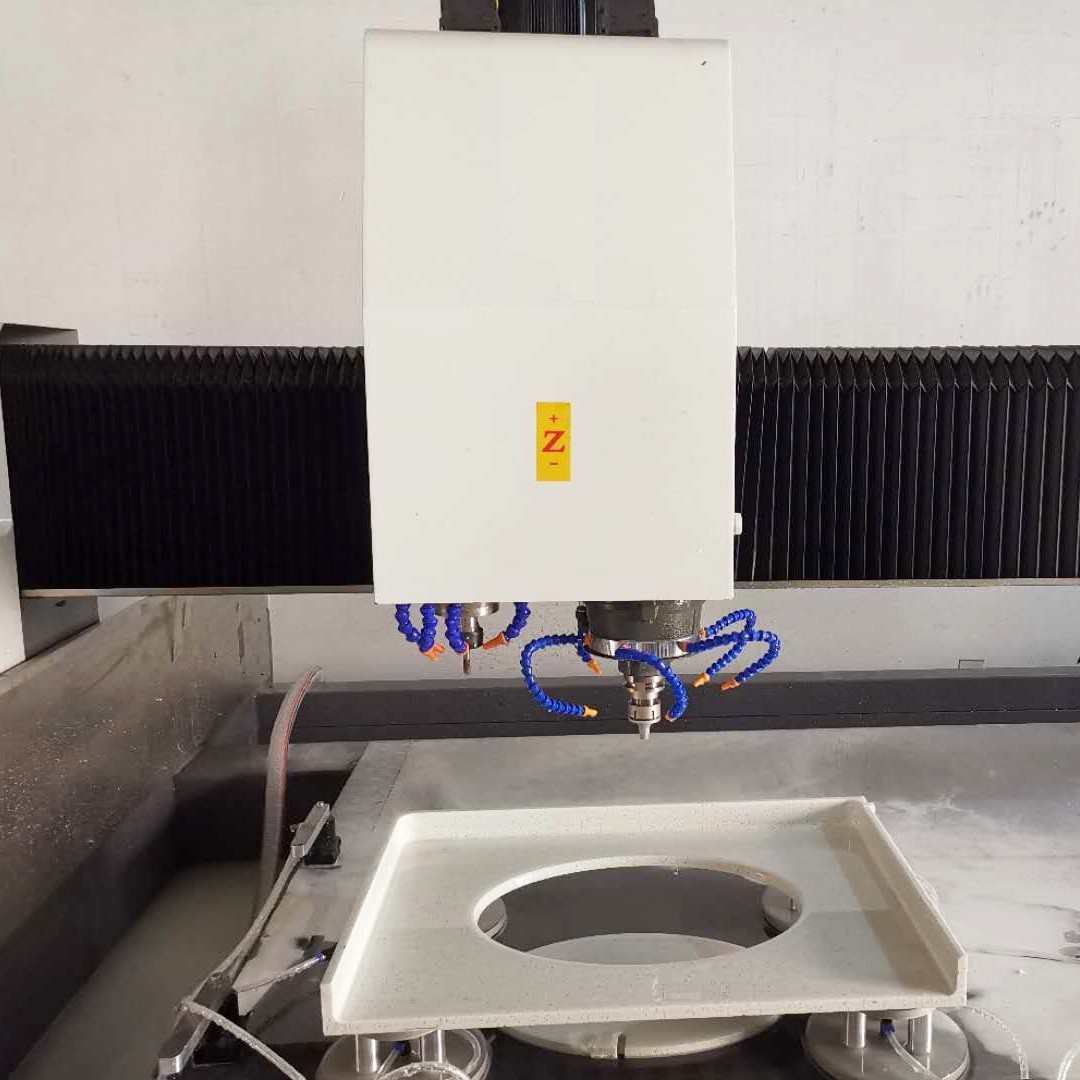

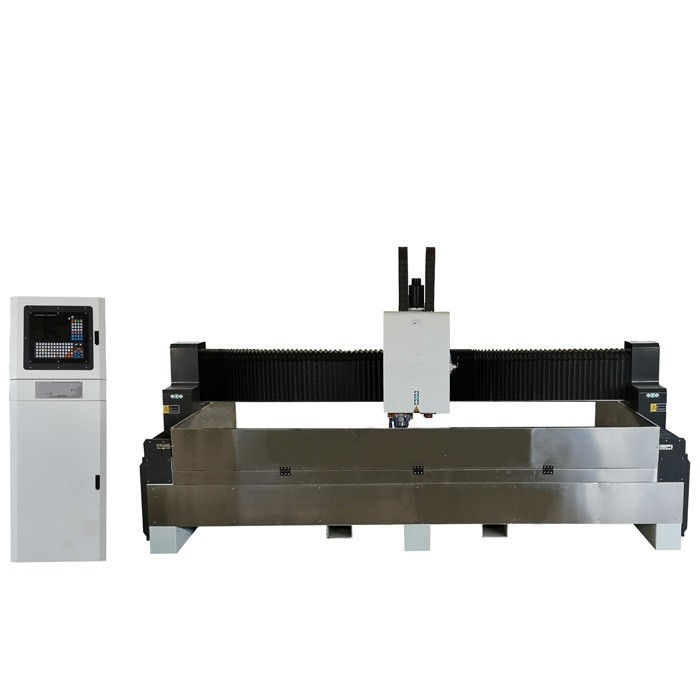

    CNC Machine For Countertop

    CNC Machine for Countertop

    3015 marble granite cutting machine polishing edge quartz kitchen countertop sink hole machine

    1. Using ball screw on X, Y, Z Axis and drive by screw nut with high precision and easy maintenance.

    2. X, Y, Z Axis adopts roller linear guide rails with high precision and long lifespan.

    3. Equipped with automatic refueling control system to refuel in fixed time, it can protect mechanical operation and reduce mistakes.

    4. The machine is equipped with USB interface, which is convenient for operator to input and output program.

    5. The spindle adopts the water cooler system to improve the stability of the spindle.

    6. The machine is equipped with handwheel so that the operator can stand in the front of the workpiece and handle the action of the knife and movement.

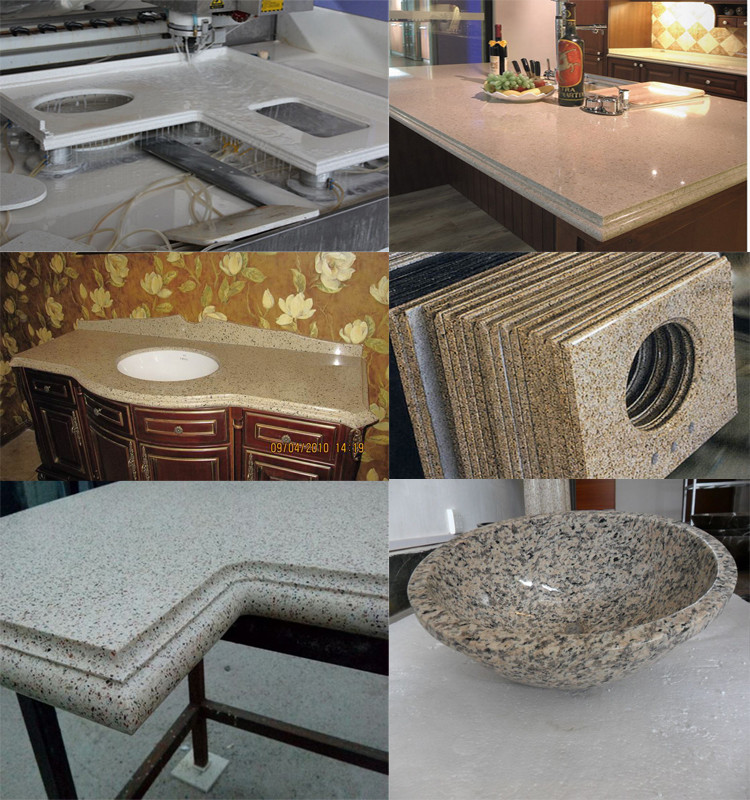

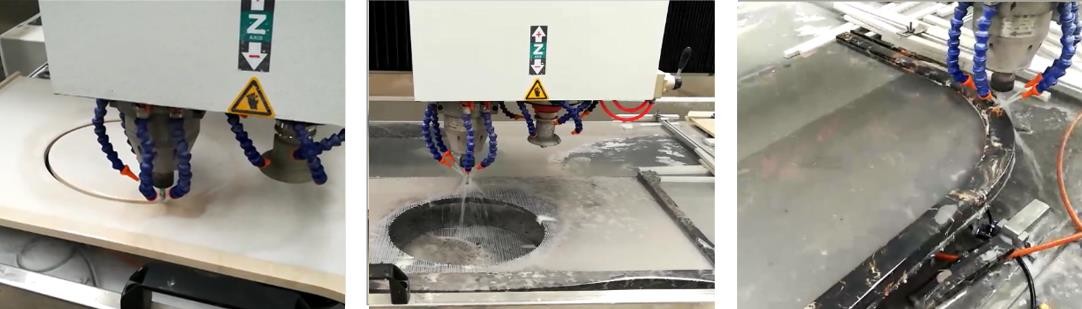

    Suitable for kitchen countertop, stone profile and stone decoration processing. It's designed to make accurate cutting out of granite, marble, quartz stone for square, oval and other shape sink hole, kitchen top pipe hole, countertop edge profile grinding and polishing.

    Type
    CNC-3015
    Machine size
    5800*2000*2000mm

    Working area
    X axis:3000mm
    Y axis:1100mm
    Z axis:400mm (Can be customized)
    Spindle
    5.5 KW water cooling (optional)
    Rotation speed
    0-24000r/min
    Repositioning precision
    0.02mm
    Power supply
    AC220V/50Hz or 380V/50Hz (optional)
    Structure
    Heavy duty
    Transmission mode
    X,Y axis: Rack,Z axis: Screw
