Multi Wire Saw Machine For Block Cutting

    Buy cheap Multi Wire Saw Machine For Block Cutting from wholesalers

    Buy cheap Multi Wire Saw Machine For Block Cutting from wholesalers
    • Buy cheap Multi Wire Saw Machine For Block Cutting from wholesalers

    Multi Wire Saw Machine For Block Cutting

    Ask Lasest Price
    Brand Name : StoneSawMachine.com
    Model Number : MCSJ-50
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, , T/T
    Supply Ability : 10 Sets Per Month
    Delivery Time : 30 days after deposit
    • Product Details
    • Company Profile

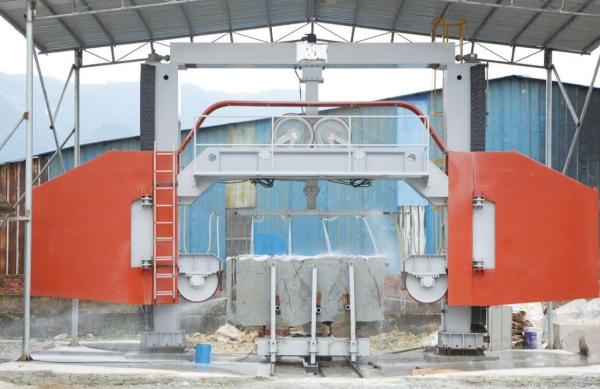

    Multi Wire Saw Machine For Block Cutting

    Multi Wire Saw Machine For Block Cutting

    China Stone Saw Machine CO.,LTD, founded in 2018, is a Hi-Tech enterprise being dedicated in research and development of diamond wire saw machines and other stone processing equipment. Until now, we have business from Brazil, Chile, U.S, Spain, Russia, South Africa, India. SSM’s product line covers multi-wire saw machine, profiling machine, squaring machine, quarrying machine, drilling machine and other stone processing equipment, which are widely used in quarrying, stone processing, mechanical manufacturing and infrastructure industries.


    The machines have been exported to U.S., Spain, Italy, Brazil, Poland, Saudi Arabia,Cambodia, etc. Since beginning, SSM has been constantly focusing on technical innovation and application of quarrying, as well as R&D of diamond wire saw machine and other stone processing equipment. So far SSM has obtained 24 national patents including 3 invention patents. The article of ‘The Research,Development and Industrialization of Diamond Wire Saw Machine’ was appraised as the Third Advance Prize of China Science and Technology.


    The independently researched multi-wire saw machine SSM-40 was defined as a leading product in China after national technology assessment, and awarded as the first major technology equipment in 2014 in Hunan Province. Meanwhile, it was listed in the menu of Changsha Self-innovative and Energy-saving Products. The new multi-wire saw machine SSM-72A is the largest and most technically difficult slab cutting machine in China. SSM has become a name brand all over the world based on its advanced technology and stable quality of diamond wire saw machines.


    φ7.3(Technical parameter)
    (Wire diameter)/mm
    φ7.3
    (Slot pitch)/mm
    9.5
    Slab thickness /mm
    5 wires
    20 wires
    40 wires
    56 wires
    72 wires
    60~100
    20.5/30/39.5/49/58.5/68/77.5/87/96.5
    (Power)/kW
    5 wires
    20 wires
    40 wires
    56 wires
    72 wires
    37Kw
    110Kw
    160Kw
    200Kw
    250Kw
    Driving wheel diameter)/mm
    φ1200
    (Driven wheel diameter)/mm
    φ1200
    (Lifting stroke)/mm
    2300
    (Horizontal stroke)/mm
    9500
    (Size of trolley )/m
    2.5*2
    (Tensioning)
    (Hydraulic tensioning)
    (Tension force)/kgf
    220~260
    (Wire speed)
    0~35m/s
    (Wire length)/m
    21.52±0.02m
    Cutting area(W×H)/m
    3.6x2.1
    Max. cutting width/mm
    5 wires
    20 wires
    40 wires
    56 wires
    72 wires
    436
    568.5
    1138.5
    1594.5
    2050.5
    (Dimension L×H)/mm
    11055x6149
    (Dimension W)/mm
    5 wires
    20 wires
    40 wires
    56 wires
    72 wires
    3100
    3906
    4475
    6826
    7282
    (Weight)/t
    5 wires
    20 wires
    40 wires
    56 wires
    72 wires
    28
    32
    48
    55
    62
