    Granite Polishing Mahcine

    Ask Lasest Price
    Brand Name : StoneSawMachine.com
    Model Number : ZDMJ-20
    Certification : CE,ISO9001
    Price : Negotiable
    Payment Terms : L/C, , T/T
    Supply Ability : 20 Sets Per Month
    Delivery Time : 30 days after deposit
    • Product Details
    • Company Profile

    Granite Polishing Mahcine

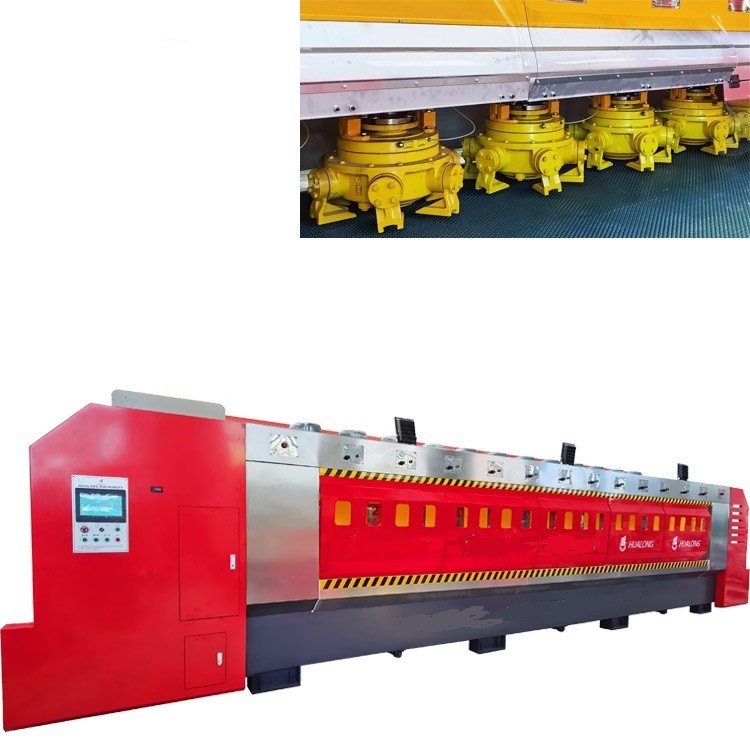

    Fully Automatic Line Polisher,Granite Polishing machine

    It is a line of machine include the slab loading table, disloading table , roller table, main polishing machine, air compressor, air tank, dryer and blower etc. it is popular for 12 heads, 16 heads and 20 heads. also 8 heads, 10 heards and 24 heads are available for iqnuiry.


    PMG16/800 High quality automatic granite stone polishing machine for slab tile line
    Features:An automatic polishing machine for granite and marble.
    PLC control system and HMI simplify the operation. The speed of conveyor belt and bridge movement is controlled by inverter. The pressure of polishing head is adjustable for different stone materials.
    The useful working width can be preset in the computer.
    The Automatic identification System for detecting the shape of stone ensures that the lifting and descending of polishing heads are accurate, when matching slabs of different shapes.
    Advantage:

    1. Good finishing with high speed.

    2. Less abrasive cost.

    3. Easy operation. Full automatic processing.

    4. Simple installation and maintenance.


    SPECIFICATIONS
    ModelLXM -12LXM-16LXM-20LXM -24
    Working Width mm500-1250500-1250500-1250500-1250
    Thiickness15-5015-5015-50
    Conveyor Speed0-2.6m/min0-2.6m/min0-2.6m/min
    Polishing Heads Number12162024
    Air Compressor14 m3/H19m3/H24 m3/H29m3/H
    Main Motor Power9*7.5kw+3*9kw12*7.5kw+4*9kw16*7.5kw+4*9kw18*7.5kw+6*9kw
    Total Power (Kw)105kw135kw162kw202kw
    Dimensions (mm)6600*2200*22007900*2200*22009200*2200*220010500*2200*2200
